ANSI Door Coordinator

Material: 304 satinless steel

Feature: Mounted to the soffit of the door frame, provides a smooth and tamper-proof means of controlling the closing of a pair of doors, equipped with an over-ride feature to prevent damage to doors and hinges

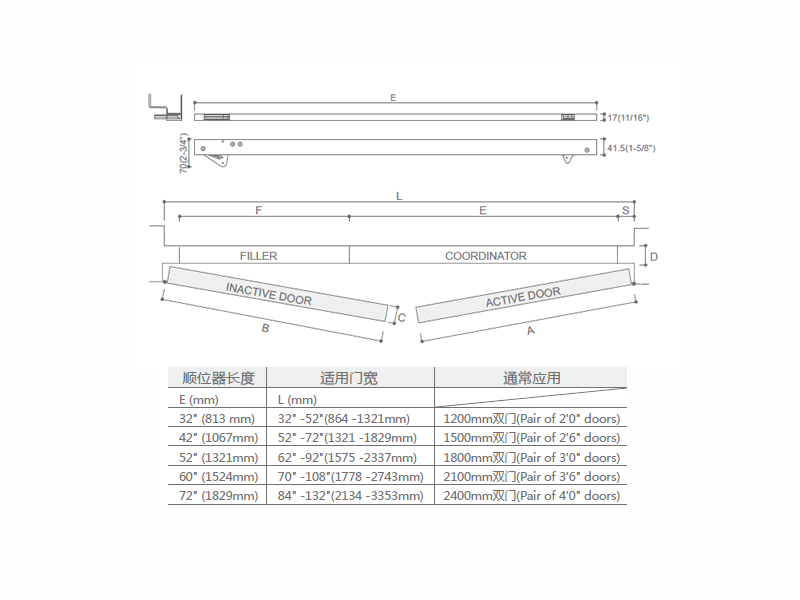

Opening Width: 21” (864 mm) to 132” (3353 mm)

Application: For controlling the closing sequence of a pair of doors

Agency certification: Conform to ANSI/BHMA 156.3,pass 90 minutes of grade A Fire Prevention Detection required by GB12955-2008
